Billing Information

Overview

Soracom platform services are postpaid. All data usage charges, connection fees (such as Custom DNS), network services (VPG, Canal, etc.), and application services (Beam, Funnel, Funk, Harvest, etc.) within a given month are aggregated at the end of each month.

Soracom provides a Billing Alert function that allows you to receive a notification if your current monthly bill exceeds a specific amount. By configuring an alert, you can be notified of unexpected charges that may occur due to unexpected data usage or other billable services, and proactively take control.

Soracom also provides two methods for viewing your account charges:

• Monthly Invoices - A PDF report summarizing your total account charges, broken down by each Soracom service or option.
• Detailed Billing CSV - A CSV file containing the full list of account charges, broken down by each day in a given month, and further categorized by device, service, or option.

Billing Dashboard

You can see an overview of your usage charges for the last four months, including the current month, from the User Console.

Billing information is not calculated in real time. It may take 12–24 hours to update.

To access the Billing Dashboard:

1. Sign in to the User Console . Click your account menu, then select Billing Dashboard.



2. Click Billing Dashboard.

   The following panels are displayed:

Billing Alerts

By default, Soracom will regularly update your current month's bill total so that you can easily check your service usage as service charges accrue. When the Billing Alert function is enabled, Soracom will also check if the monthly bill total exceeds a threshold that you set, and if so, send an email notification to the root account email address.

The Billing Alert function only sends an email notification when triggered and does not make any changes to your SIMs or any configured services. Your Soracom services will continue to operate normally without interruption.

Note that the monthly bill total is not calculated in real time. As a result, there may be up to a 24 hour delay between the time when your service usage actually exceeds the threshold, and when the monthly bill total is updated and the billing alert is triggered. You may wish to set a slightly lower threshold in order to receive an alert earlier, in case additional charges accrue before the alert is triggered. !!!! Additionally, because the Billing Alert function only provides a notification and does not make any changes, your account will continue to incur charges for services used.

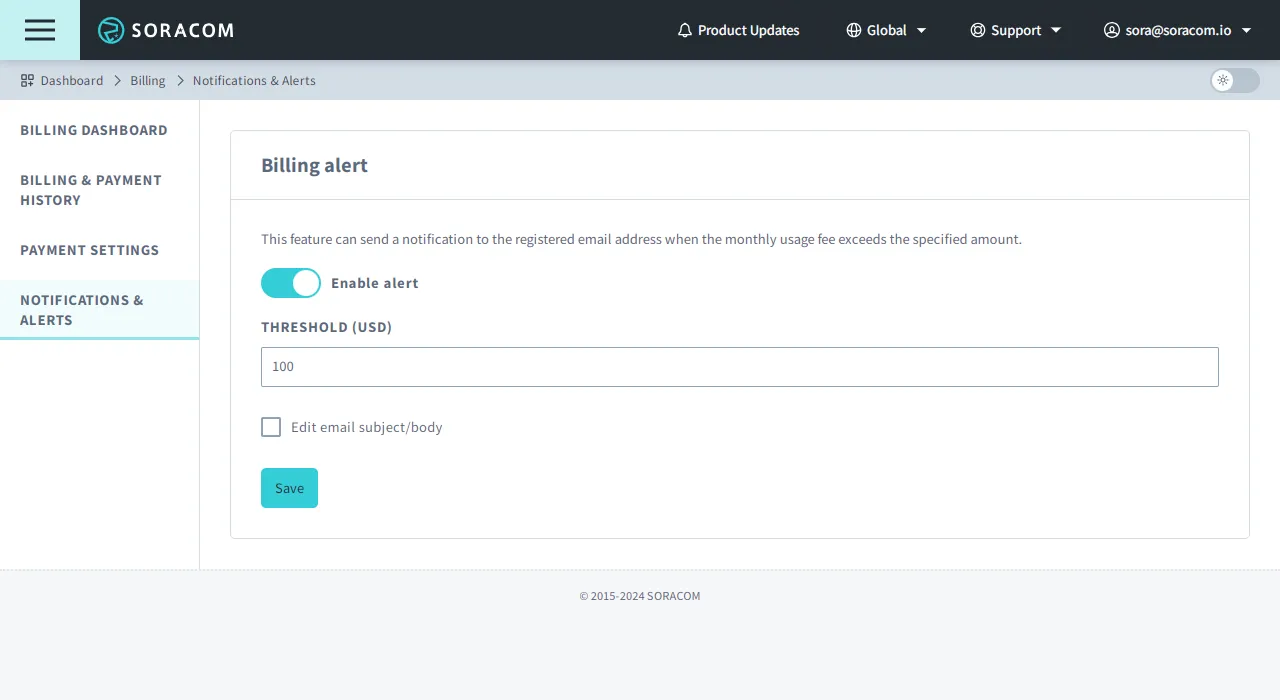

To set up a billing alert:

1. Sign in to the User Console . Click your account menu, then select Billing Dashboard.



   !!! Because billing is processed separately for Global and Japan coverage types, Billing Alerts must also be configured separately. If you are using both coverage types, make sure to set up a Billing Alert for each coverage.

2. Click Notifications & Alerts.



3. Click Enable Alert, then configure the following items:

   • Threshold (required) - The bill amount that will trigger an alert notification. When your monthly bill exceeds this amount, a notification will be sent to the root account email address.

   • Edit email subject/body (optional) - The alert notification sent to your root account email address will provide basic information by default. If you want to customize the email subject or body (such as to match specific filters in your email service provider), check this box to modify the email.

     ! The following placeholder variables can also be used inside the email subject and body. If a billing alert is sent, the variables will be replaced by their corresponding actual values. ! ! - ${operatorId} - The Operator ID of the account. This may be useful if you have multiple Soracom accounts and want to know from which account the Billing Alert occurred. ! - ${coverage} - The coverage type from which coverage the Billing Alert occurred. This will be replaced with g for Global Coverage or jp for Japan Coverage. ! - ${limitTotalAmount} - The threshold value specified above. ! - ${currentTotalAmount} - The actual current monthly bill amount, at the time the Billing Alert was triggered.

4. Click Save.

The Billing Alert function uses Event Handler to create its alerts. You can create your own custom Event Handler using the Monthly bill amount rule in order to send notifications to additional email addresses, execute a webhook, invoke an AWS Lambda function, or perform other actions when your monthly bill total exceeds the threshold. For more information, refer to the Event Handler documentation.

Monthly Invoices

Downloading Invoices

Monthly invoices containing the summary of your account charges are prepared at the end of each month and available for download from the User Console.

PDF invoices are available only for months where the total monthly account charges have been finalized, and are not available for ongoing billing periods. A billing period begins on the first day of each month at 00:00

UTC, and ends on the last day of the same month at 23:59

UTC. ! If you would like to find detailed information of your account usage for the current month, you can download the Detailed Billing CSV following the instructions below. ! If you have terminated your account, invoices can still be retrieved. Refer to our Account Termination documentation for additional information.

Invoice history is only available for the past 18 months.

To download a past invoice:

1. Sign in to the User Console . Click your account menu, then select Billing Dashboard.



2. Click the Billing & Payment History tab.



3. Click the button next to the month you want to view and select Download Invoice. This is available as a PDF.

Receiving Invoices by Email

When a monthly invoice has been finalized, an email notification will be sent to notify you that the invoice is ready for download from the User Console. You can additionally opt in to receive the invoice directly via email. When this option is enabled, the PDF invoice will be attached directly to the email notification.

Monthly invoice email notifications (including PDF invoice attachments, if enabled) are sent to your Primary Email address, as well as any additional email addresses that are configured as Billing Email addresses. This may be useful in a multi-user organization where you would like monthly invoices to be sent to an accounting or finance department for record keeping. ! To configure Billing Email addresses, refer to the Email Settings documentation.

To enable receiving monthly invoices via email:

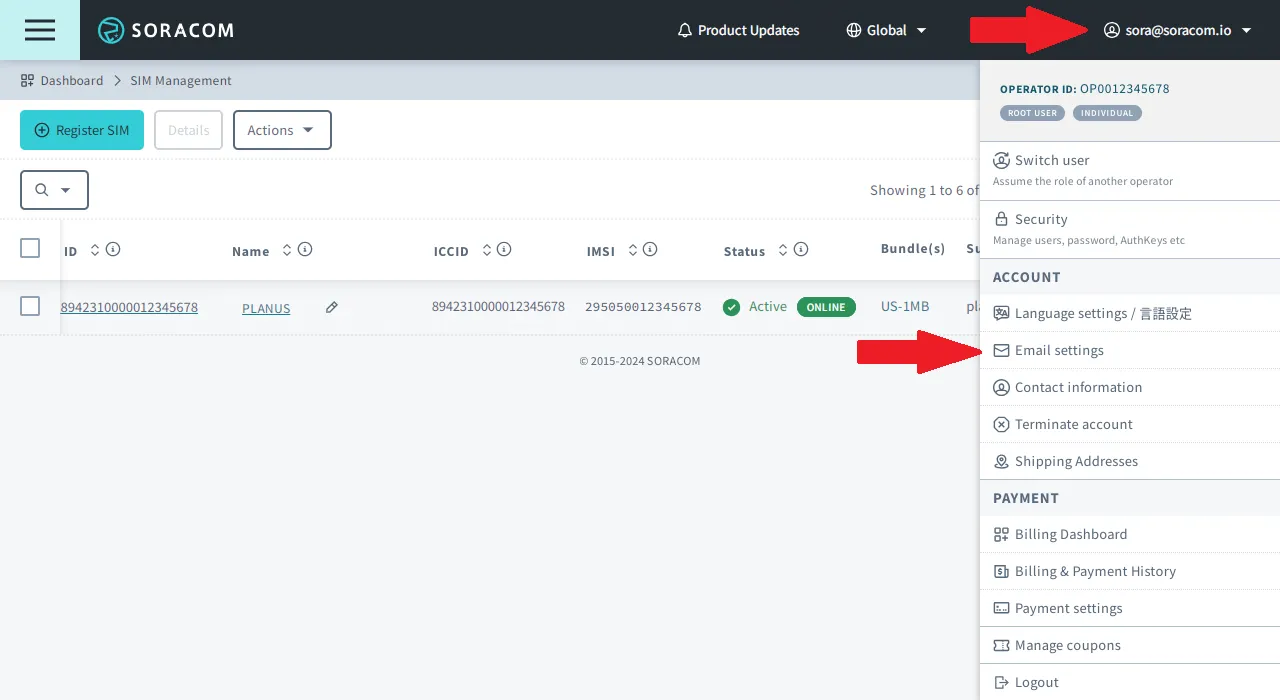

1. Sign in to the User Console . Click your account menu, then select Email settings.

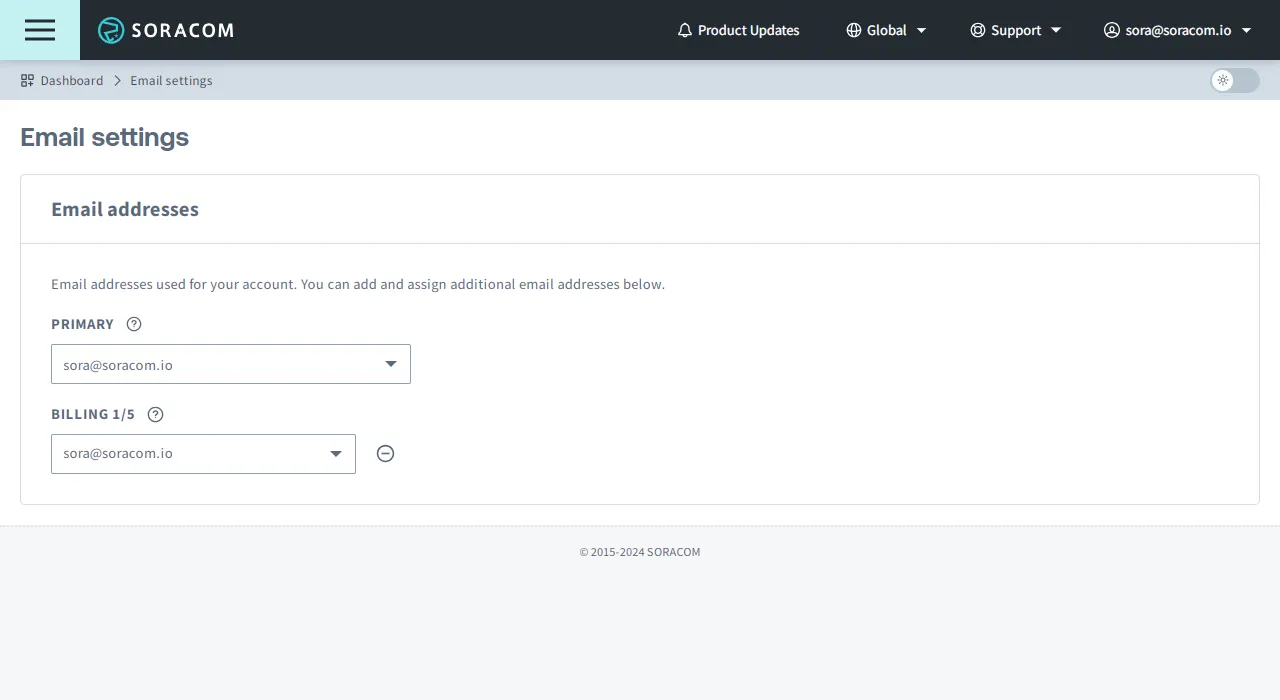

2. In the Email Addresses section, add an email address under the Billing option.



3. To enable receiving invoices directly by email, check the Send a PDF copy of my invoice to my email checkbox in the Configuration section at the bottom of the page.



Payment Statuses

When viewing the Billing & Payment History tab, each monthly invoice displays a payment status that reflects the current processing state of that invoice.

Payment statuses generally follow this progression:

Aggregating → In preparation → Charging → Processing → Paid

If a payment fails, the status will show Error instead of Paid. In some cases, additional statuses related to refunds or third-party collections may also appear.

Payment Status Definitions

The following table describes each payment status and its meaning:

Error Details

If a payment status shows Error, the payment for that billing period was unsuccessful. Common causes include:

• Expired credit card
• Insufficient funds or credit limit reached
• Card issuer declined the transaction
• Incorrect or outdated payment information

To resolve a payment error, verify your payment method in the Payment Settings and update your information if needed. If the issue persists, contact Soracom Support for assistance.

Detailed Billing CSV

For the full itemized list of charges incurred on your Soracom account, you can download a CSV file which contains the full breakdown of all usage, service, and option charges.

Detailed billing CSV files are available for each past month of usage, as well as for the current month.

Downloading a CSV

1. Sign in to the User Console . Click your account menu, then select Billing Dashboard.

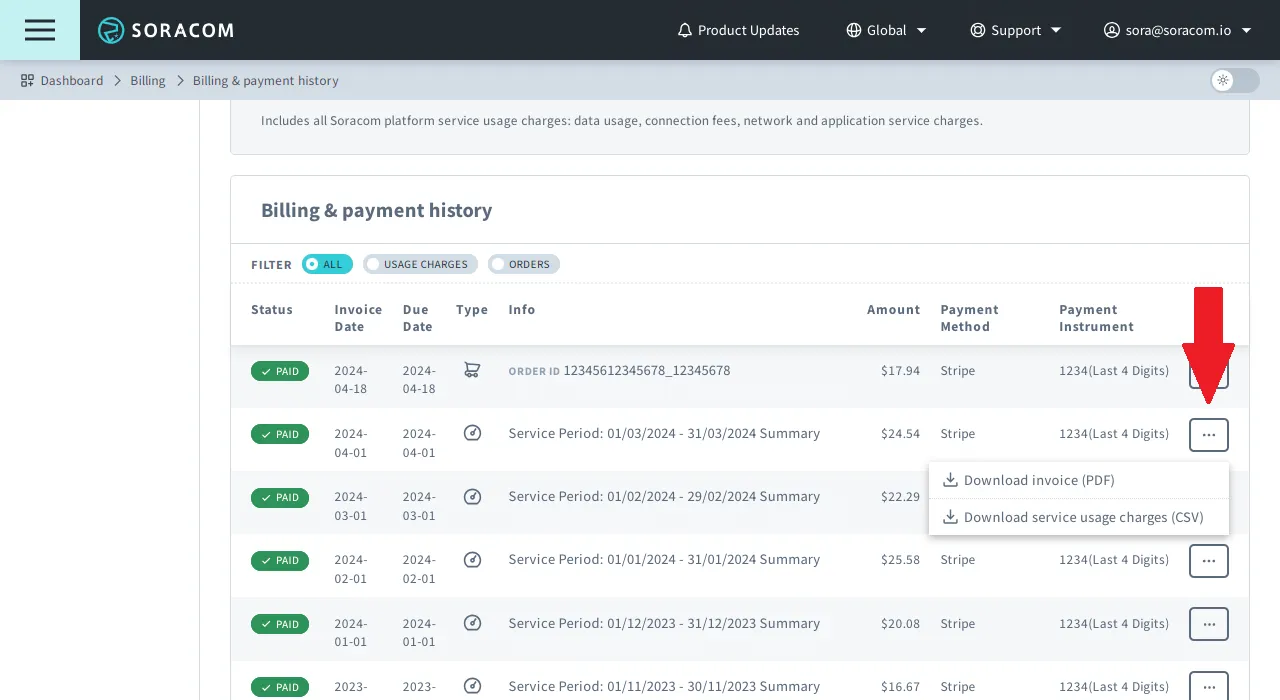

2. Click the Billing & Payment History tab.

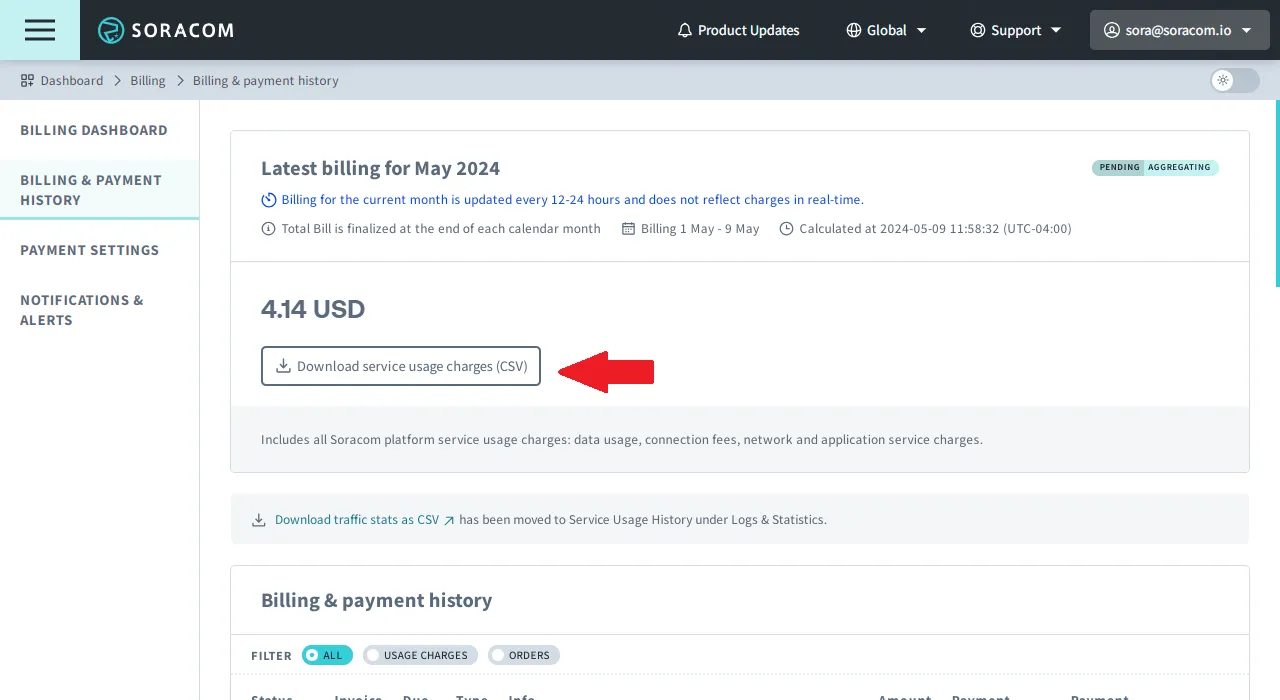

3. To download the CSV for the current month, click the Download service usage charges button at the top of the page.



4. To download a CSV for a previous month, locate the invoice within the Billing & Payment History list. Then click the button to the right and select Download service usage charges.



   ! Each CSV file may take a minute to generate, depending on the number of devices, services, or options active during the given month.

CSV files for the current month are updated once per day.

{#

Opening the CSV File

Most modern spreadsheet applications should have no trouble opening the CSV file. However, in Microsoft Excel 2013 or earlier, non-alphanumeric text may not be recognized properly. Depending on the billing region (Global or Japan), this may cause formatting errors when opening CSV files.

If you encounter any errors, such as invalid characters or misaligned data, you can follow these steps to manually import the CSV data into your spreadsheet application (Microsoft Office demonstrated below).

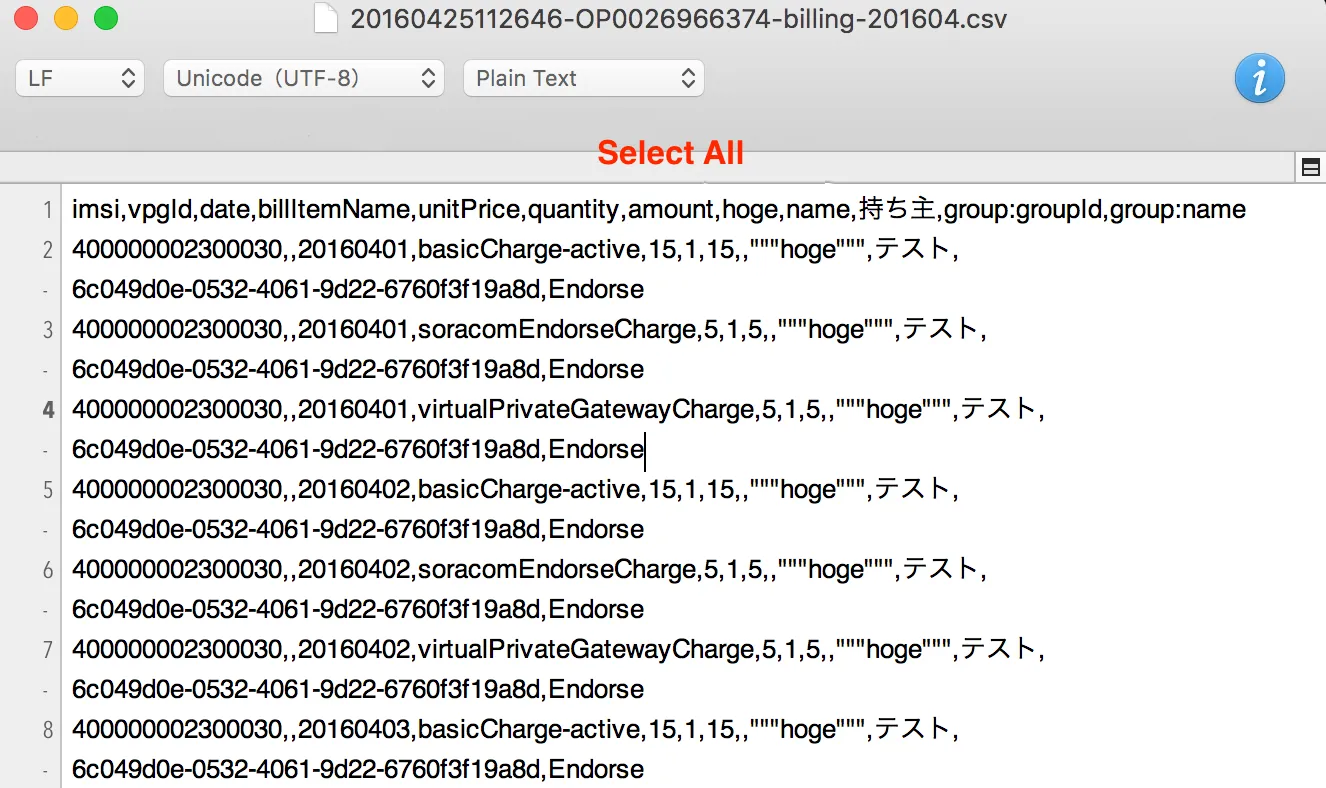

1. Open the CSV file using a text editor which supports UTF-8 character encoding.

2. Select the entire text and copy it.

1. Open your spreadsheet application and create a new worksheet.

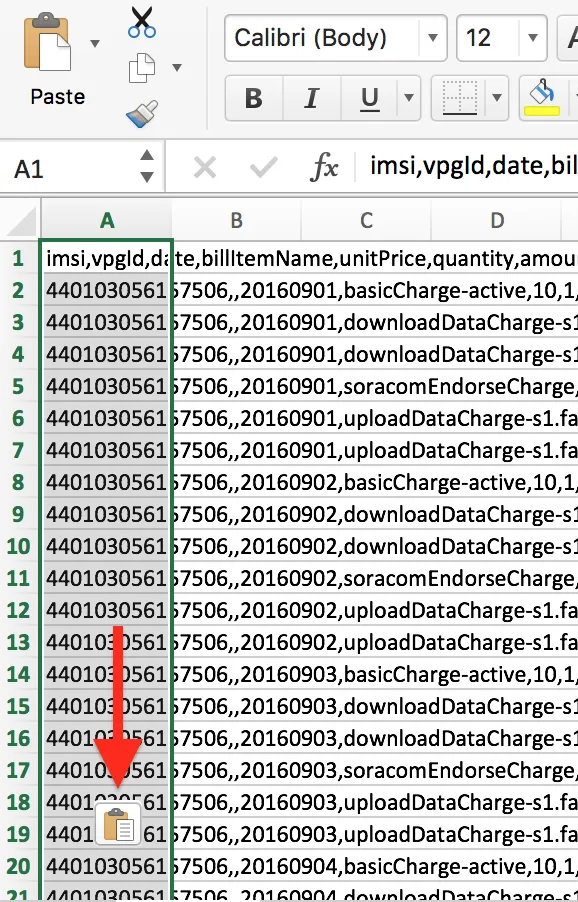

2. Paste the text into the first cell.

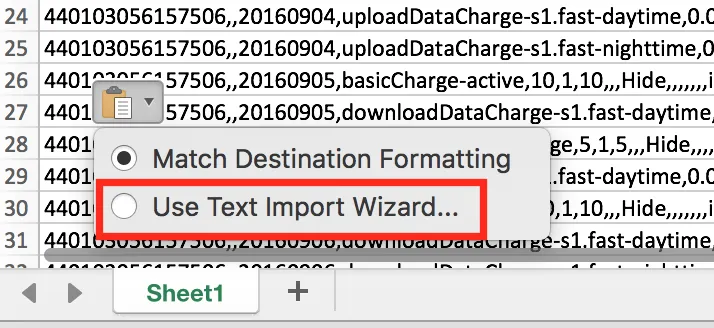

5. A Paste helper icon should appear. Click it and select Use Text Import wizard....

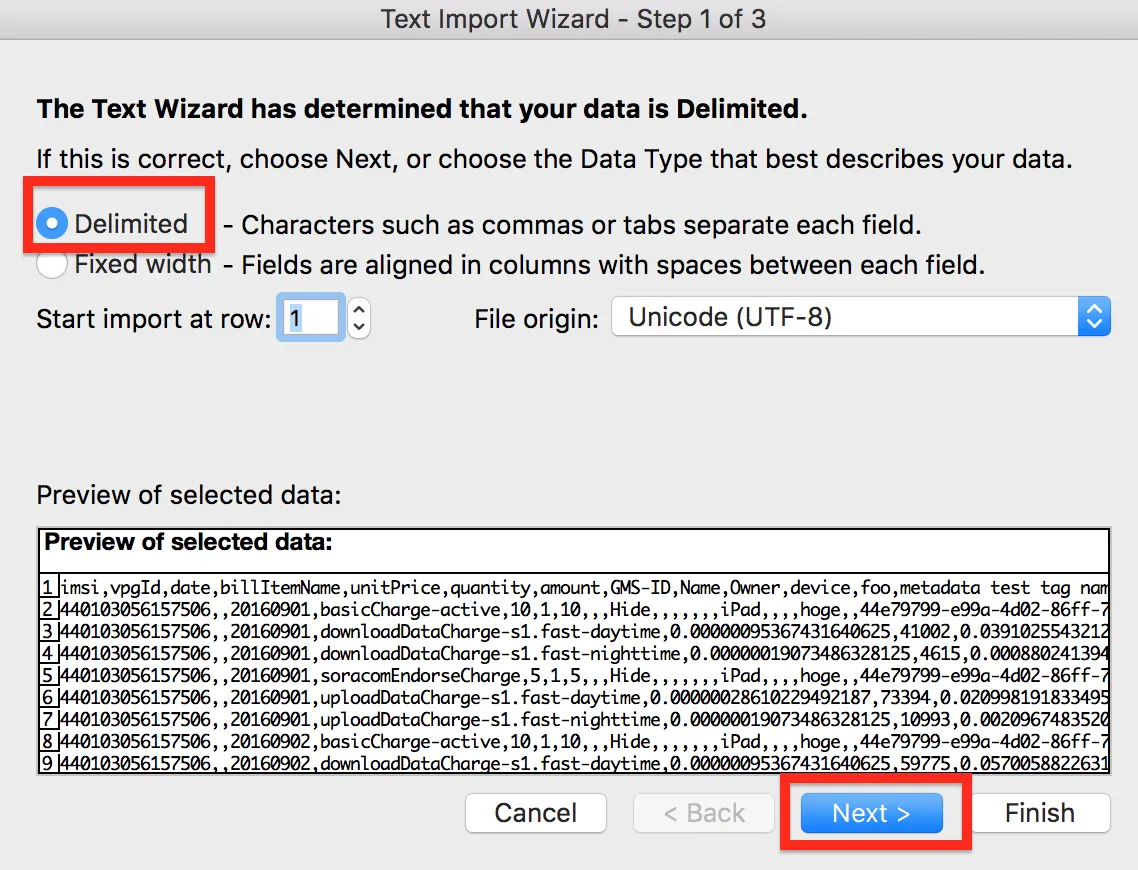

6. In the wizard, choose Delimited and click Next.

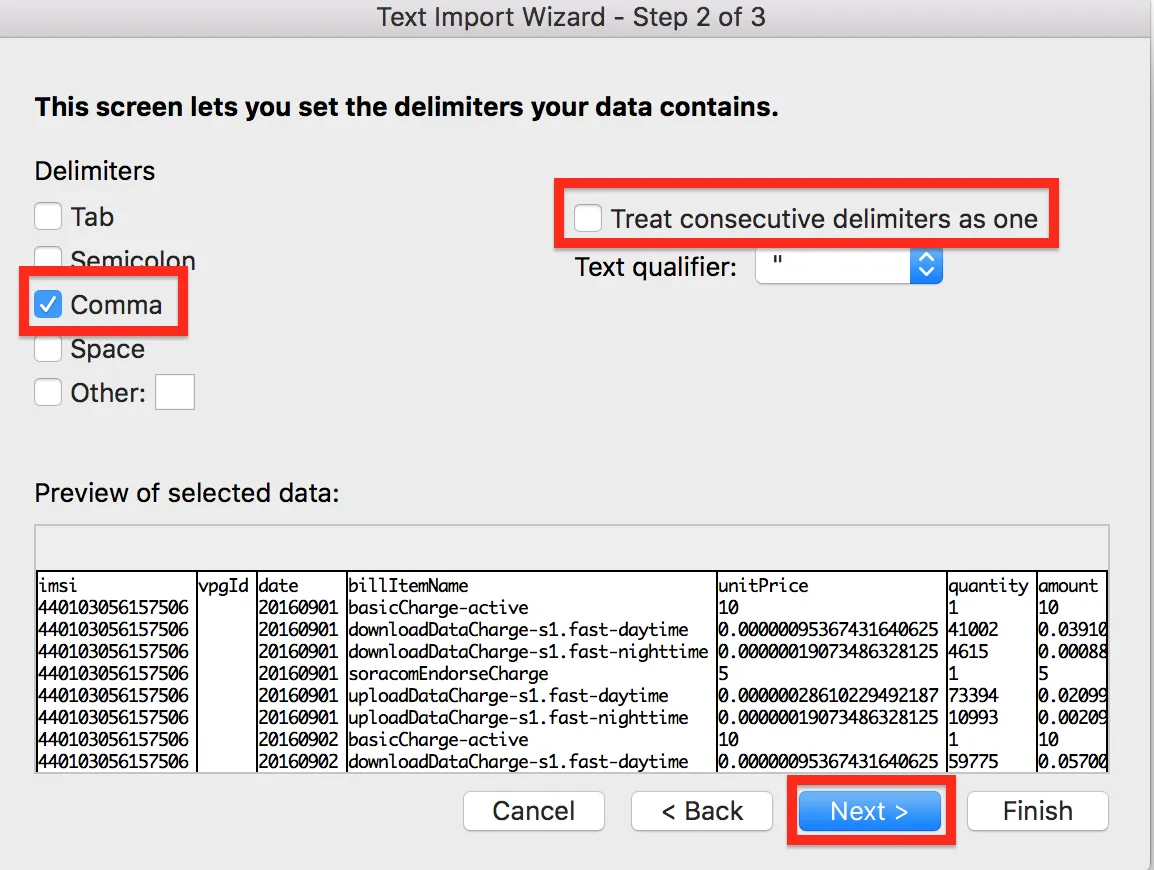

7. Select comma as a delimiter, uncheck Treat consecutive delimiters as one, and click Next.

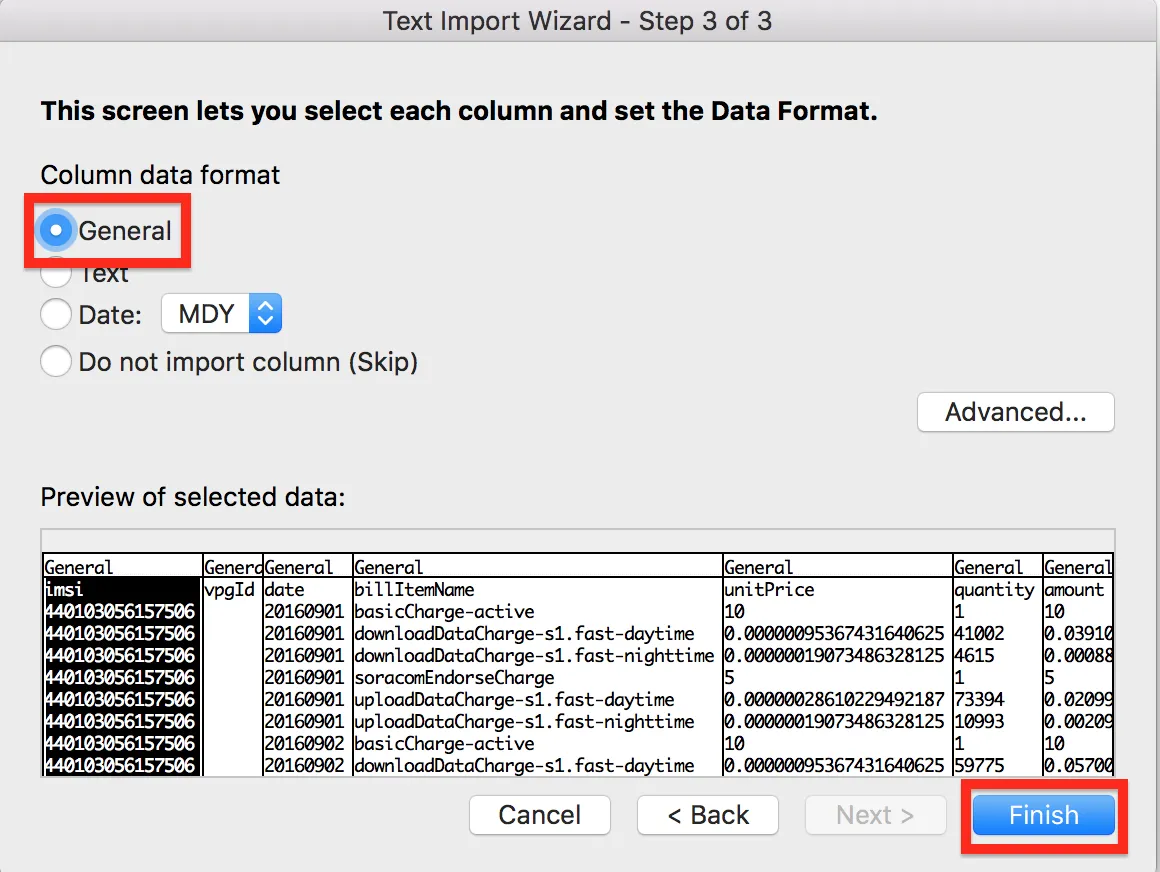

8. Finally, set the data format for each column to General and click Finish.

#}

Understanding the CSV Format

The detailed billing CSV file provides a complete breakdown of every device, service, or option charge incurred in your Soracom account for a given month.

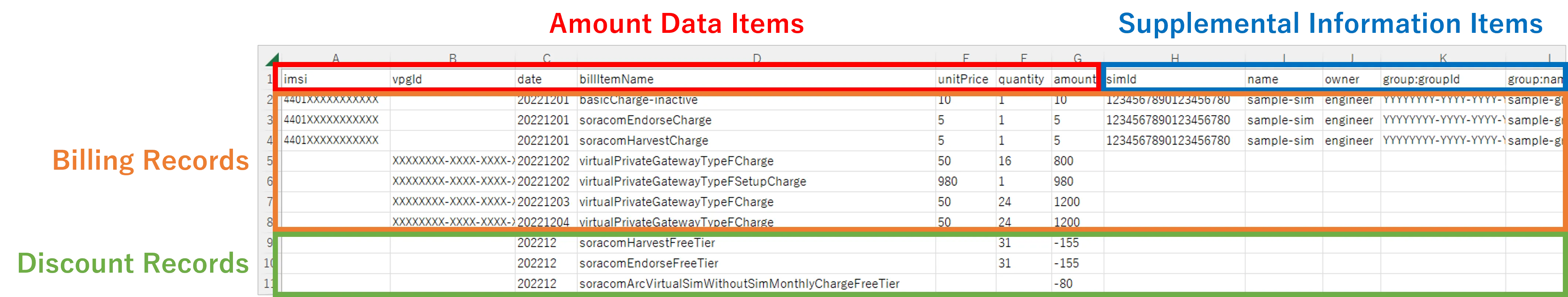

Once you have downloaded a detailed billing CSV file, you can open it with a suitable spreadsheet application. The data should look something like this:

• First Row - Header information. These items help identify or classify the content below. This section is broadly separated into the following:
  • Amount Data Items - Data that corresponds to a specific billable item (Includes IMSI, VPGID, Date, etc.).
  • Supplemental Information Items - Additional data used to help identify the corresponding billable item, including any device or group name associated with the item (Includes Tag, Group Name, etc.).
• Second Row Onward - Data record rows. These rows contain the actual billing information for the given month. This section is broadly separated into the following:
  • Billing Records - Billable device, service, or option charges.
  • Discount Records - Discounts applicable to the billable records, including free tier allowances, volume discounts, and coupons.

Billing Record Breakdown

A billing record is created for each subscriber or VPG in your account, for each day and for each billing data item. For example, if you have 1 active SIM card in your account which has consumed data during the given month, you will see at a minimum the following billing records:

• basicCharge - The daily basic fee for the SIM card, for a specific day in the given month.
• dataTrafficCharge - The data usage charge for the SIM card, for a specific day in the given month.

Any additional options, such as Custom DNS, sending or receiving SMS, and application services such as Harvest Data, will also be listed as separate billing records.

Each billing record line will contain either the IMSI or VPG ID which the billing record corresponds to, the raw unit price, quantity, and billing record amount. The units used for each billing record vary depending on the billing record type, and therefore are omitted from the CSV data. Information on the units used for each record type are listed in the table below.

Billing records are calculated for each day, beginning at 00:00

These rules also apply to other device types, as well as to billable platform services such as Virtual Private Gateways.

Discount records also follow the same rules, with the amount represented as a negative number in order to indicate reduction of cost.

Taxable amounts are not included in the CSV data. In order to calculate any applicable taxes, simply add all of the values in the amount column to determine the billing total, then apply any taxation rules as needed using this total amount.

CSV Item Name Reference

The following items appear when your account is billed for a particular device, service, or option.

The following items appear when an allowance, discount, or coupon is applicable to one or more of the billable items:

Tags and Groups

The Tag/Group Data Items section includes the tags and group names configured for each SIM. For example, if a SIM in your account has the following configuration:

• Name - MySIM
• Tags
  • MyCustomTag1 - MyCustomValue1
  • MyCustomTag2 - MyCustomValue2
• Group - abcdef00-0000-0000-0000-000012345678 (MyGroup)

The following data will be appended to the CSV header (first line), as well as to any line items for the SIM:

name,MyCustomTag1,MyCustomTag2,group:groupId,group:name
MySIM,MyCustomValue1,MyCustomValue2,abcdef00-0000-0000-0000-000012345678,MyGroup

You can use tags to quickly group or filter the CSV to make calculations based on custom tag value or group name.

Programmatic Usage

You can also access the detailed billing information programmatically in order to integrate information on Soracom platform usage within your application.

Soracom API

You can download the current month's most recent billing information using the exportLatestBilling API:

curl -X POST \
|  -H 'X-Soracom-API-Key: <MY-API-KEY>' \
|  -H 'X-Soracom-Token: <MY-TOKEN>' \
|  https://g.api.soracom.io/v1/bills/latest/export

curl -X POST \
|  -H 'X-Soracom-API-Key: <MY-API-KEY>' \
|  -H 'X-Soracom-Token: <MY-TOKEN>' \
|  https://jp.api.soracom.io/v1/bills/latest/export

Similarly, you can use the exportBilling API to download the corresponding data for a particular month, instead specifying the YYYYMM in the query path:

curl -X POST \
|  -H 'X-Soracom-API-Key: <MY-API-KEY>' \
|  -H 'X-Soracom-Token: <MY-TOKEN>' \
|  https://g.api.soracom.io/v1/bills/201901/export

curl -X POST \
|  -H 'X-Soracom-API-Key: <MY-API-KEY>' \
|  -H 'X-Soracom-Token: <MY-TOKEN>' \
|  https://jp.api.soracom.io/v1/bills/201901/export

While each monthly billing period ends on the last day of the given month at 23:59

UTC, the CSV may not be immediately available for download via the exportBilling API using the YYYYMM query path format. Billing calculations for the most recent completed month are generally completed within 1 to 3 business days from the start of the following month.

Notes on Parsing CSV Data

All CSV data is encoded in UTF-8 (with BOM). Ensure that you parse the data accordingly.

• If a value contains any commas ,, the entire value will be enclosed within double-quotes ".
• If a value contains any double-quote ", each double-quote will be escaped using two double-quotes "".

Ensure that your CSV parser is configured to correctly parse according to these rules.

In general, as the data columns are variable and may be subject to additional fields in the future, there is a possibility that a particular column may not be in the same position when parsing different CSV files. When implementing a CSV parser, ensure that you either process the first row in order to confirm the column order, or restructure the data into key/value pairs, objects, hash tables, or associative arrays using an adequate CSV parser.
